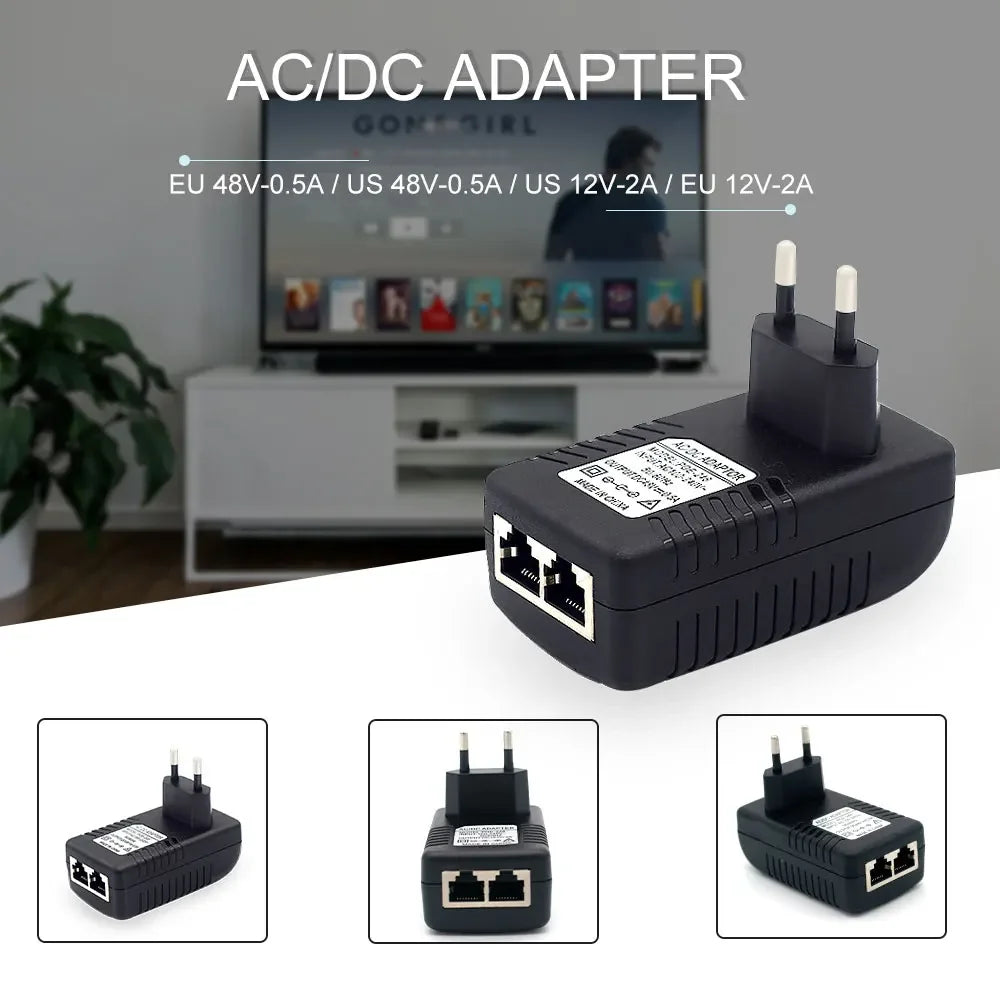

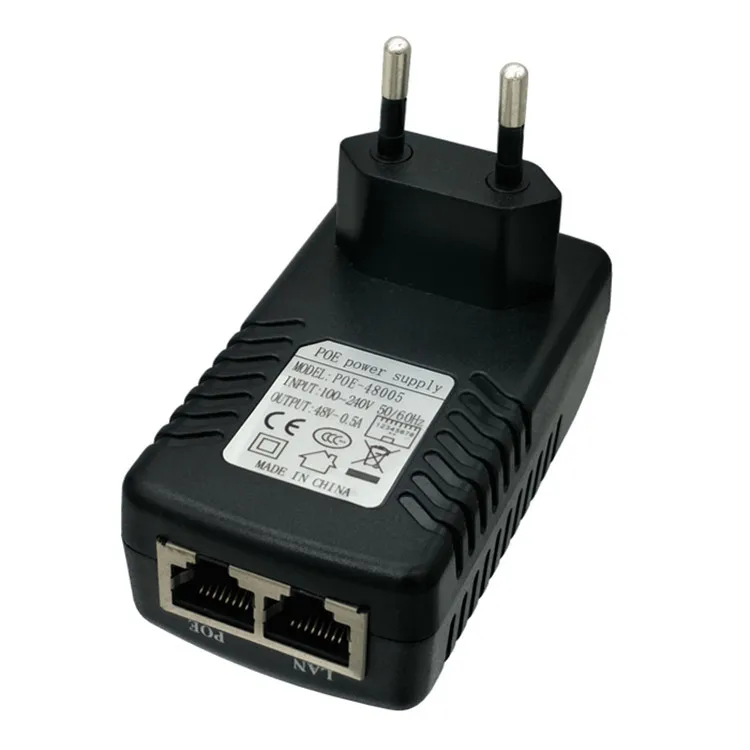

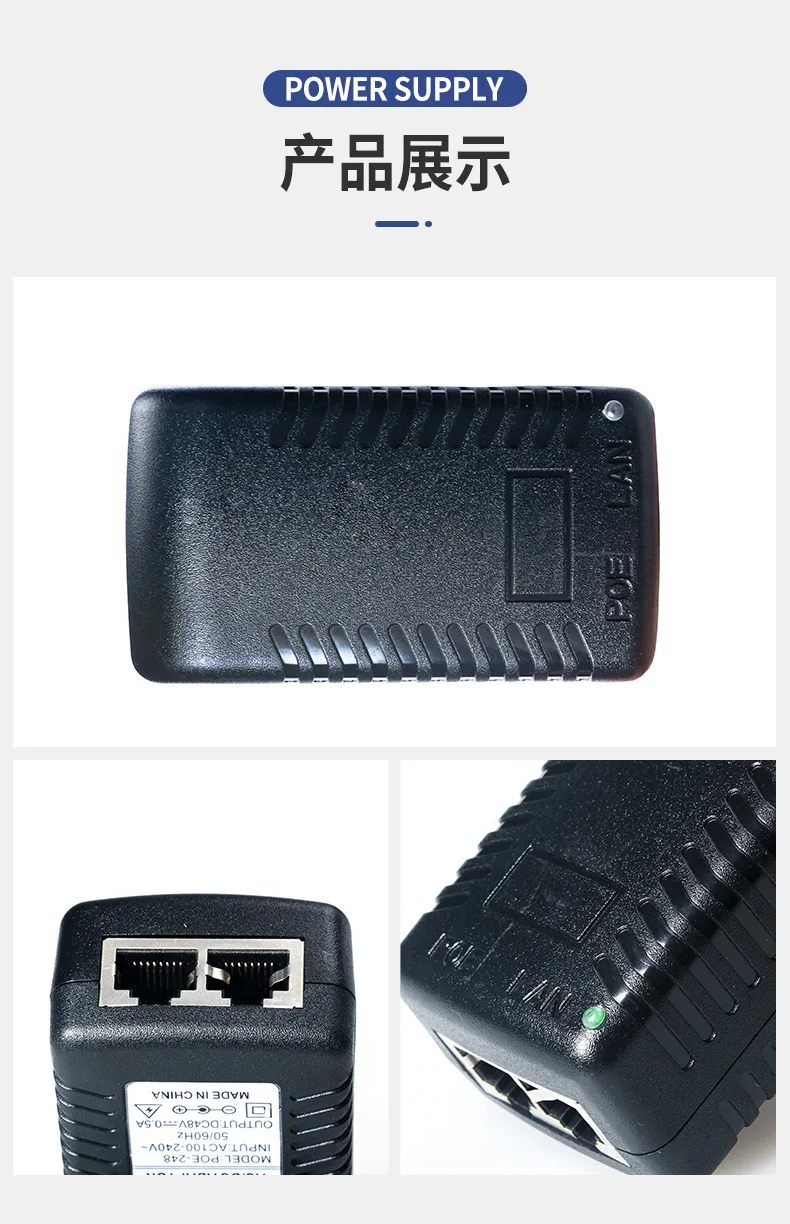

48V/12V POE injector Ethernet CCTV Power Adapter 0.5A /2A 24W POE for IP camera IP Phones POE Switch Power Adapter EU/US Option

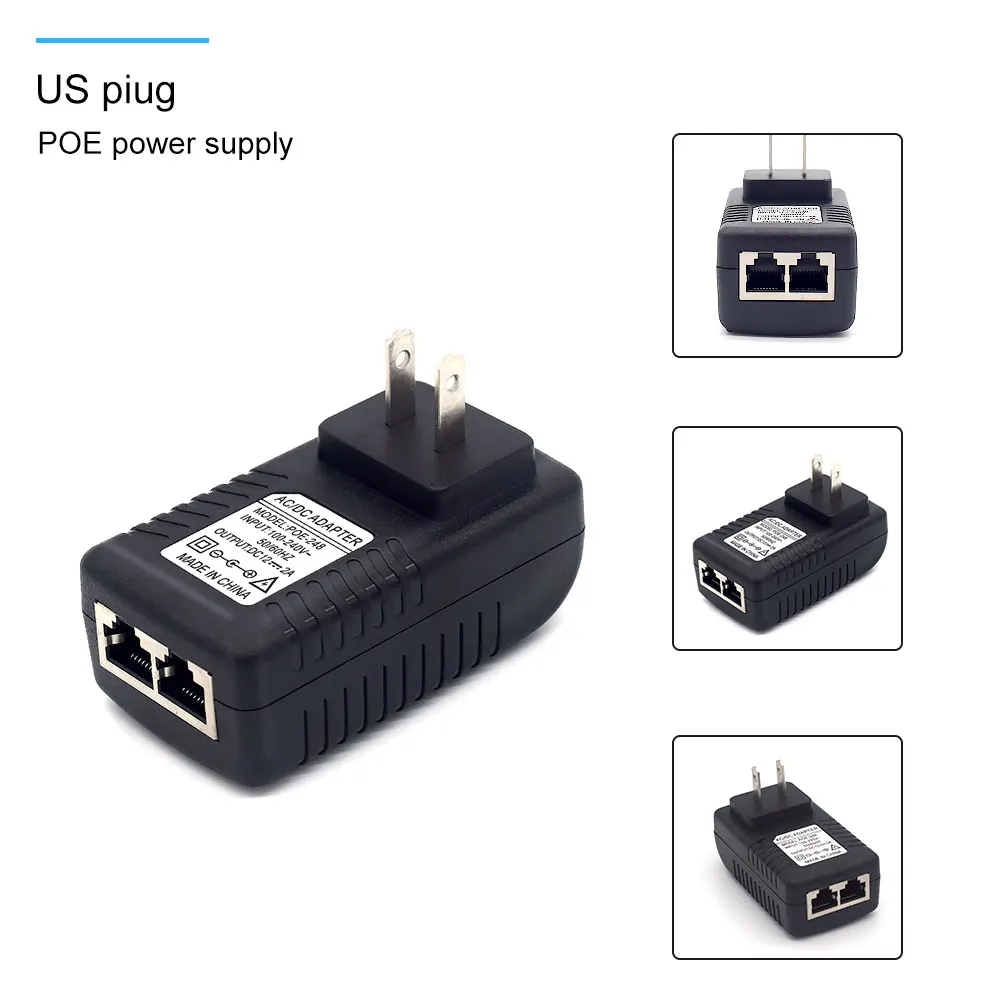

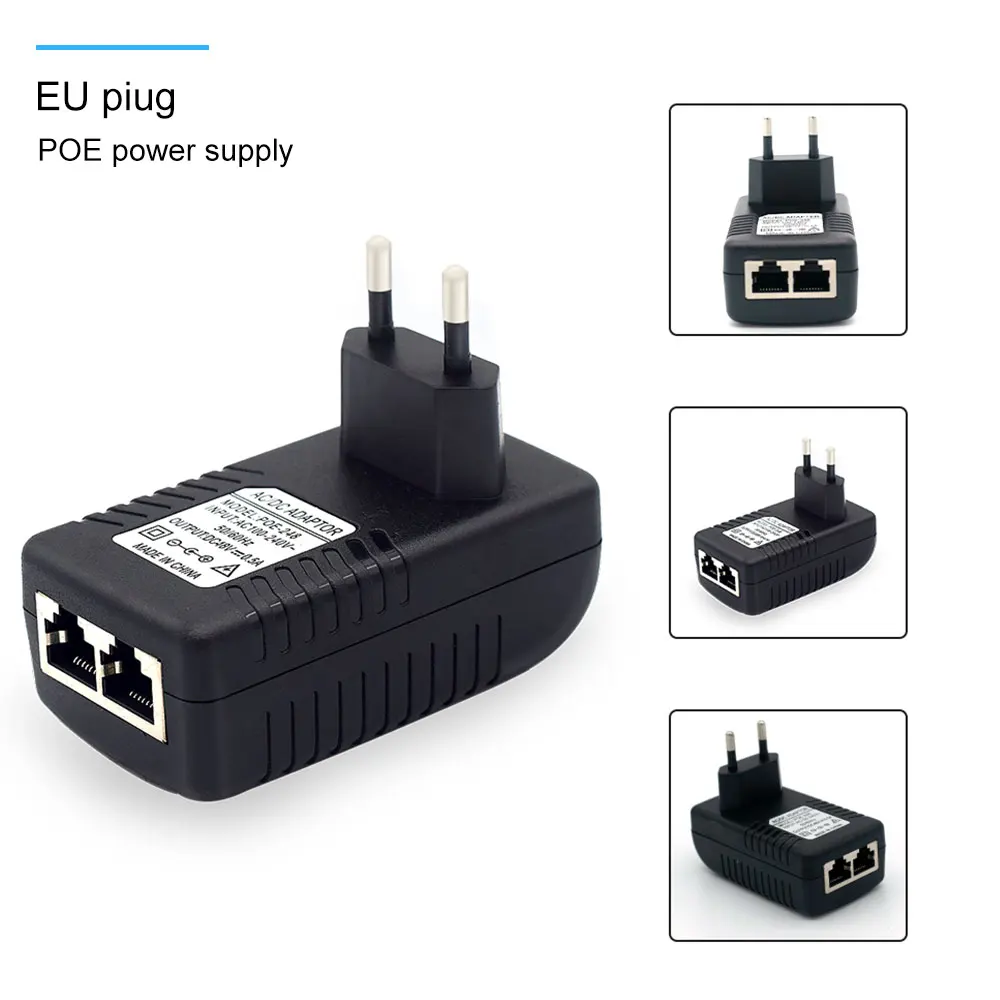

Notice: Please notice there is EU/US/UK Plugs Optional Please kindly remark the plug when you order, Thank you!

Introduction:

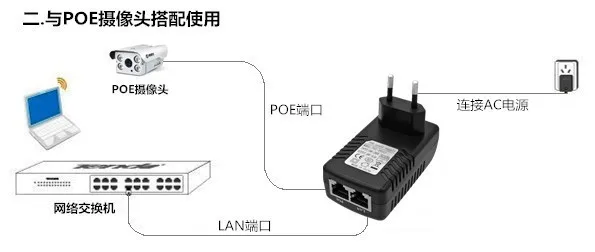

This Non standard active PoE injector is a simple and convenient power supply equipment for PoE or Non PoE devices via only an Ethernet cable, which will save your trouble about power line cabling and save cost, while it does not have auto detection function and directly supply power to the network devices by force as soon as you connect them, please confirm your device carefully when you use it.

Features:

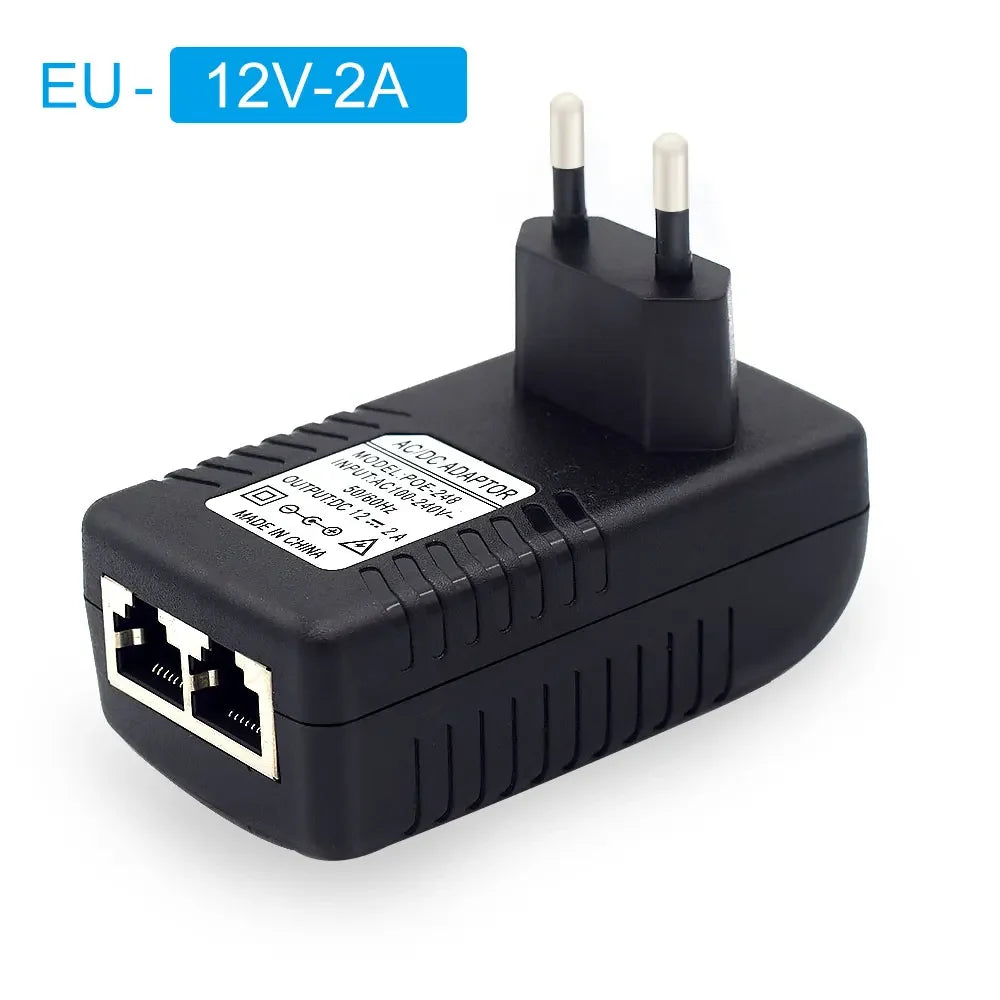

1. Power Output
Rated voltage: DC12V
Rated current: 2A
Power pin: 4&5(+), 7&8(-);
Data Pin: 1236

2. Power Input
Rated Voltage range: 100~240VAC
Frequency range: 50~60Hz

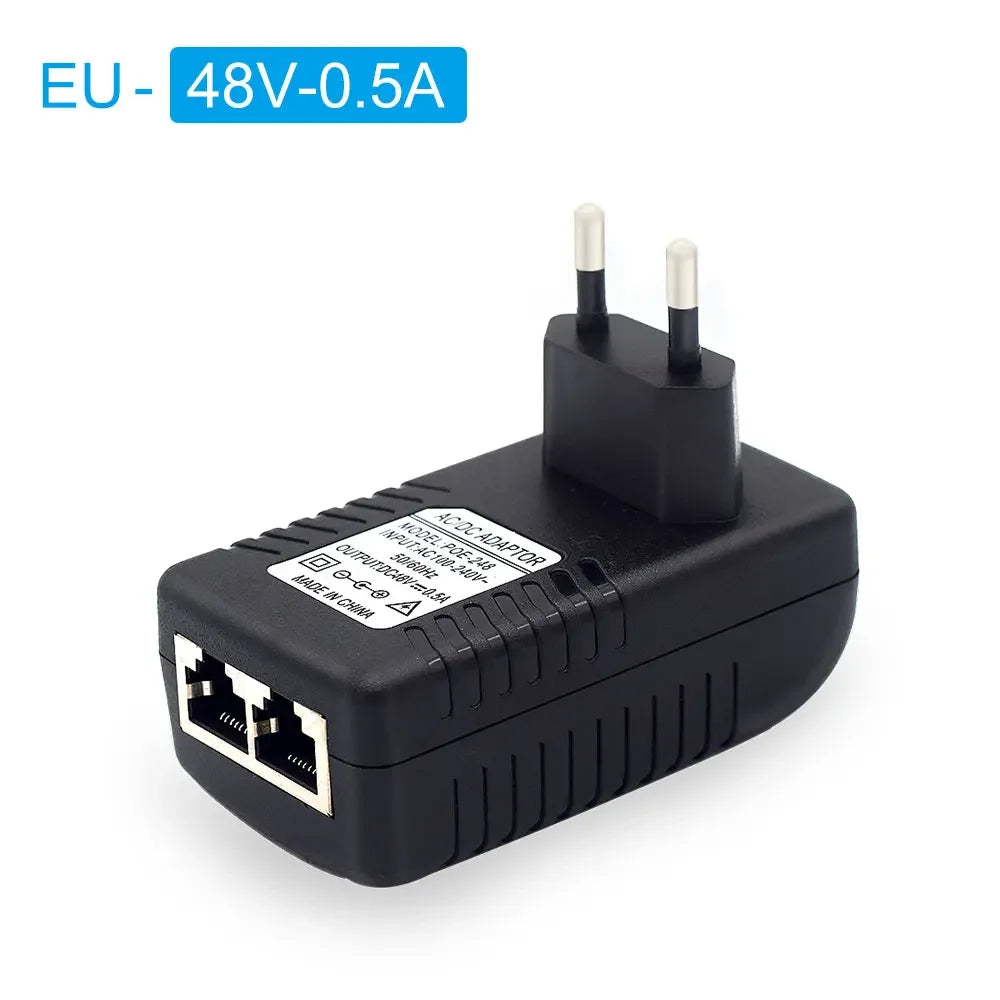

1. Power Output Rated voltage: DC48V
Rated current: 0.5A
Power pin: 4&5(+), 7&8(-);
Data Pin: 1236
Network interface: 100M;

2. Power Input
Rated Voltage range: 100~240VAC
Frequency range: 50~60Hz

3. Applications: Non PoE Device such as Access Points, Routers, other network devices.
